Sachtler 萨科勒 7595 Video 75 OB Dolly 12-85KG承重 重型移动三脚架

• Sachtler heavy-duty tripod system with dolly for easy repositioning
• Supports payloads between 12 – 85 kg (26 – 187 lb)

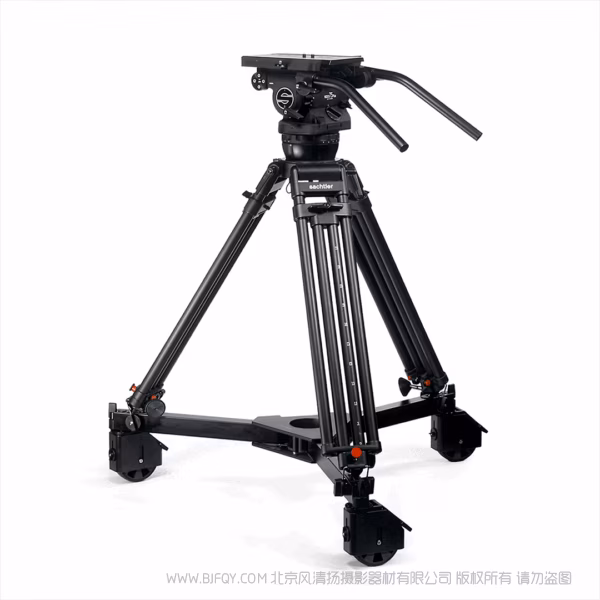

The Video 75 OB dolly is a heavy-duty tripod system paired with the Dolly XL for easy repositioning.

Engineered to deliver high performance even with heavy payloads up to 85 kg (187 lb), the Sachtler Video 75 Plus Studio fluid head is ready for the most demanding production environments. The fluid head features 24-steps of counterbalance and a heavy-duty V-plate with a sliding range of 145 mm (5.7 in) to position and balance the camera setup at all angles. Its frictionless fluid drag system offers nine levels of smooth pan and tilt control, with the option to fully disengage drag for rapid whip pans when speed is essential.

In this system, the Video 75 Plus Studio is combined with the OB 2000 Heavy-Duty aluminium Tripod and Dolly XL. Engineered for field production and outside broadcasting, the OB 2000 delivers maximum durability and stability with its aluminium construction, built in spreader and rotatable rubber feet. A level bubble, leg scaling and rotary leg clamping system enable fast and repeatable setup.

The Dolly XL includes 125 mm (4.9 in) diameter wheels with cable guards, tracking locks and eccentric locks. Together, the system provides a versatile height range of 117 – 178 cm (46.1 – 70.1 in), ensuring flexibility across demanding production environments.

Technical Specifications

Metric Imperial

In The Box

Video 75 Plus Studio with wedge plate and two pan bar front sections (7501), OB 2000 (6481), Dolly XL (7080)

• 7501 - Video 75 Plus Studio
• 6481 - Tripod OB 2000
• 7080 - Dolly XL

• Sachtler重型三脚架系统，带推轨，便于重新定位
• 可支持12至85公斤（26至187磅）的有效载荷

Video 75 OB dolly 是一款重型三脚架系统，配合 Dolly XL 配合使用，便于重新定位。

Sachtler Video 75 Plus Studio 液态头设计设计，即使在高达85公斤（187磅）的重载条件下也能提供高性能，能够应对较严苛的生产环境。流体头具备24级平衡和重型V型板，滑动范围为145毫米（5.7英寸），可从各个角度定位和平衡相机装置。其无摩擦流体拖力系统提供九级平滑的平滑平移和倾斜控制，关键速度时可完全解除阻力以快速甩尾。

在该系统中，Video 75 Plus Studio 与 OB 2000 重型铝合金三脚架和 Dolly XL 结合使用。OB 2000专为现场生产和外景广播设计，采用铝制结构、内置扩张器和可旋转橡胶足，提供较大耐用性和稳定性。水平气泡、腿部测量和旋转腿夹系统实现快速且可重复的安装。

Dolly XL配备直径125毫米（4.9英寸）的轮毂，配有钢索护罩、追踪锁和偏心锁。该系统提供117至178厘米（46.1至70.1英寸）的多功能高度范围，确保在高强度生产环境中的灵活性。

技术规格

公制英制

盒子里

Video 75 Plus Studio，带楔形板和两个前面板（7501），OB 2000（6481），Dolly XL（7080）

• 7501 - Video 75 Plus Studio
• 6481 - 三脚架 OB 2000
• 7080 - 多莉XL
