Sachtler 萨科勒 6096 System 60 Vario 2-80 带滑轮 演播室 升降气压架 三脚架

System 60 Vario 2-80

SKU: 6096

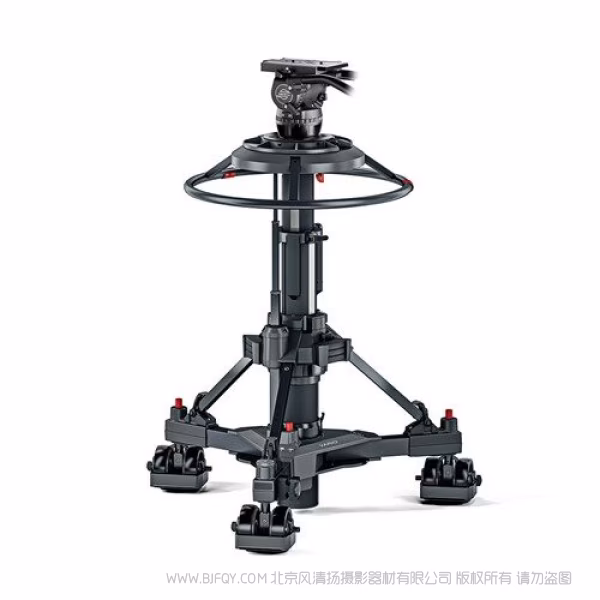

Sachtler Video 60 Studio on 2-stage Vario Ped 2-80

When working with heavier cameras in studio or on location, being able to work quickly, effectively and safely gives you more time to get the best results. The Video 60 Studio fluid head’s 18-step counterbalance system allows you to achieve perfectly adjusted balance quickly and simply. The sliding balance plate has a range of up to 115 mm, giving you even more precise adjustment and safety at any angle. All while supporting a maximum payload of 65 kg.The Touch & Go quick release and automatic locking reduce mounting and releasing your camera to a matter of seconds. Once you are set and ready to go, the frictionless leak proof fluid drag with nine levels of drag gives you perfectly smooth movement both vertically and horizontally. The Video 60 has easily identifiable, direct response horizontal and vertical brakes that are vibration free. The integrated assembly lock lets you mount the camera safely. Whatever your schedule, the Sachtler Video 60 Plus Studio won’t slow you down.

Highly stable and yet lightweight, the Vario pedestals provide optimum support both in Studio and OB environments. The functions of the Vario Ped 2-80 are perfectly matched to the requirements of Studio and OB daily life as it is a robust, reliable and protable solution that provides soft and precise movement delivering unparraled talent tracking and able to achieve seated and standing eyeline positions even at close range. It is a 2-stage pedestal for large payloads up to 80 kg / 176 lb in Studio and OB environment. Its smooth and precise on-air movement and on shot stroke length of 77 cm / 30.3 in is perfect for following talent moving from seated to standing postion ‘on shot’. It has an inlet valve for any air source and a pressure gauge for clear and reliable set-up. The detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Vario Ped 2-80 has crab and steer functionality, allowing working in tight spaces and on shot direction changes. It comes with 12.5 cm / 5 inch wheels and adjustable cable guards. The skid has an easy to adjust position for narrow clearance. The steering wheel has easily accessible slots for trim weights, which can be used to quickly adjust the column pressure if the temperature changes during the shot.

Technical Specifications

Metric Imperial

In The Box

Vario Ped 2-80 incl Manual Pump and Video 60 Studio

• Vario Ped 2-80 (S2303-0001)
• Video 60 Plus Studio (6001)
• Manual Pump for Vario Ped 1-70 and Vario Ped 2-80 (V4172-1900)

在演播室或外景使用较重的摄像机时，能够快速、高效且安全地工作，能让你有更多时间获得较佳效果。Video 60 Studio 流体头的 18 步平衡系统让你快速且简单地实现完美调节的平衡。滑动平衡板的调节范围可达115毫米，提供更精准的调节和安全保障，无论角度如何。同时较大有效载荷为65公斤。Touch and Go快速释放和自动锁定功能将相机的安装和释放时间缩短到几秒钟。一旦准备就绪，无摩擦防漏流体阻力和九级阻力，能让你在垂直和水平方向上实现完美平滑的移动。Video 60配备了易于识别的直接响应水平和垂直制动系统，且无振动。集成装配锁可以让你安全地安装相机。无论你的时间安排如何，Sachtler Video 60 Plus Studio 都不会拖慢你的节奏。

Vario底座高度稳定且轻便，在工作室和户外环境下都能提供较佳支撑。Vario Ped 2-80 的功能完美契合工作室和产科的日常生活需求，它是一款坚固、可靠且可行的解决方案，提供柔和精准的动作，实现无人能及的人才跟踪，甚至能在近距离实现坐姿和站立视线位置。它是一个两级基座，适用于大型有效载荷，较高可达80公斤/176磅，适用于演播室和外景舱环境。其平滑精准的空中动作和77厘米/30.3英寸的击球长度，非常适合跟随选手从坐姿到站立姿势“击球”时的动作。它配备了任何空气源的进气阀和压力表，确保设置清晰可靠。可拆卸滑架使基座可以简单地拆分为两部分，便于存放和运输。Vario Ped 2-80具备蟹角和转向功能，允许在狭窄空间和调整击球方向。配备12.5厘米/5英寸轮圈和可调节的钢索护罩。滑架位置易于调整，以实现较窄的间隙。方向盘设有易于接触的配重槽，可快速调节柱压力，以应对射击过程中温度变化。

技术规格

公制英制

盒子里

Vario Ped 2-80 手动泵与视频 60 Studio

• Vario Ped 2-80（S2303-0001）
• 视频60加工作室（6001）
• Vario Ped 1-70 和 Vario Ped 2-80 手动泵（V4172-1900）
