System 25 Vario 1-70
SKU: 2585

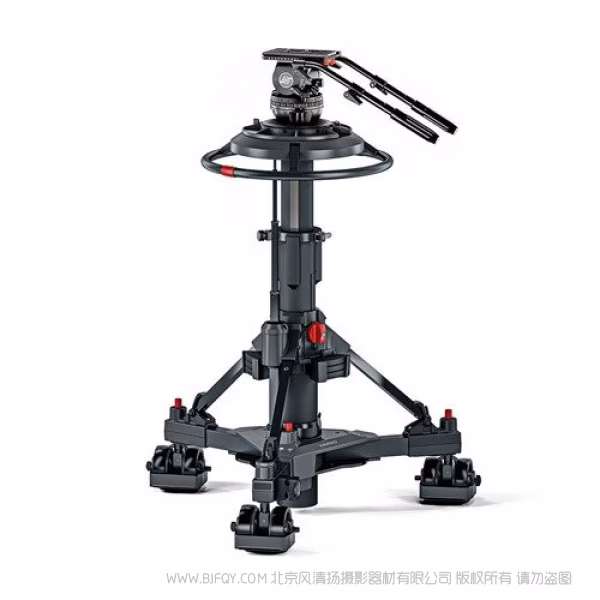

Sachtler Video 25 FB on Vario Ped 1-70
The Sachtler Video 25 FB is a lightweight, durable and reliable addition to your gear. The seven step drag system gives you confidence that your movements will be smooth without jerks and vibrations. Attaching your camera is as quick as a single click with the Touch&Go quick release and automatic locking for speedy mounting and removal. The Video 25 FB comes with 4-bolt fixing flat base.
Highly stable and yet lightweight, the Vario pedestals provide optimum support both in Studio and OB environments. The Vario 1-70 is a robust, reliable and protable solution that provide soft and precise movement delivering unparraled talent tracking and able to achieve seated and standing eyeline positions even at close range. The Vario Ped 1-70 features ergonomically positioned controls offers crab & steer functionality and can be used with payloads up to 70kg / 154lb. It has 2 stages, the upper stage is perfectly balanced for on shot shot performance. The lower stage is a balance assisted stage for easy elevation and extended height range. It has an integral manual pump and an inlet valve for use with an external source. In addition, the Vario Ped 1-70 includes a pressure gauge for clear and reliable set-up. The detachable dolly allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 12.5cm / 5 inch wheels and adjustable cable guards. It also features narrow tracking and transit widths to allow for moevment in tight spaces.
Technical Specifications
Metric Imperial
| Payload | 35 kg |
| Drag | 7 + 0 horizontal and vertical grades of drag |
| Counterbalance | 18 steps |
| Pedestal Height Range | 86 cm to 167 cm |
| Stages | 2 |
| Perfect Balance Stages | 1 |
| On Shot Stroke | 41 cm |
| Steering | Crab & Steer |
| Weight | 45.1 kg |
| Interface Compatibility | Touch & Go |
| Pan Bar Count | 2 |
| Fluid Head | Video 25 |
| Bowl Size | Flat Base |
| Sliding Range | 10 cm |
| Tilt Range | 90° to -75° |
In The Box
Vario Ped 1-7 0 incl Manual Pump and Video 25 FB
- Vario Ped 1-70 (S2302-0001)
- Video 25 Plus FB (2501P)
- Manual Pump for Vario Ped 1-70 and Vario Ped 2-80 (V4172-1900)
Sachtler Video 25 FB 是您设备的轻便、耐用且可靠的补充。七步拖拽系统让你相信动作顺畅,没有抖动和震动。通过Touch&Go快拆和自动锁定,安装相机只需一键即可,方便快速安装和拆卸。Video 25 FB配备了4螺栓固定平底。
Vario底座高度稳定且轻便,在工作室和户外环境下都能提供较佳支撑。Vario 1-70是一款坚固、可靠且可行的解决方案,提供柔和精准的移动,实现无与伦比的人才追踪,甚至能在近距离实现坐姿和站立视线位置。Vario Ped 1-70配备了符合人体工学的控制装置,提供蟹行和转向功能,可载重较高达70公斤/154磅。它有两个阶段,上阶段完美平衡,适合当场击球表现。下级为平衡辅助级,便于升降并延长高度范围。它内置手动泵和一个用于外部水源的进气阀。此外,Vario Ped 1-70配备了压力表,确保设置清晰可靠。可拆卸的推轨使基座可以简单地拆分为两部分,便于存放和运输。配备12.5厘米/5英寸轮圈和可调节钢索护罩。它还设计了窄窄的跟踪和交通宽度,便于在狭窄空间内移动。
技术规格
公制英制
| 有效载荷 | 35公斤 |
| 阻力 | 7 + 0 水平和垂直阻力等级 |
| 平衡 | 18个步骤 |
| 基座高度范围 | 86厘米至167厘米 |
| 阶段 | 2 |
| 完美平衡阶段 | 1 |
| 击球时 | 41厘米 |
| 转向 | 螃蟹与牛 |
| 重量 | 45.1公斤 |
| 接口兼容性 | 触与走 |
| 潘巴尔计数 | 2 |
| 流体头 | 视频25 |
| 碗大小 | 平面底座 |
| 滑行射程 | 10厘米 |
| 倾斜射击场 | 90°到-75° |
盒子里
Vario Ped 1-7 0 包含手动泵和视频 25 FB
- 变异佩德1-70(S2302-0001)
- 视频25加FB(2501P)
- Vario Ped 1-70 和 Vario Ped 2-80 手动泵(V4172-1900)
